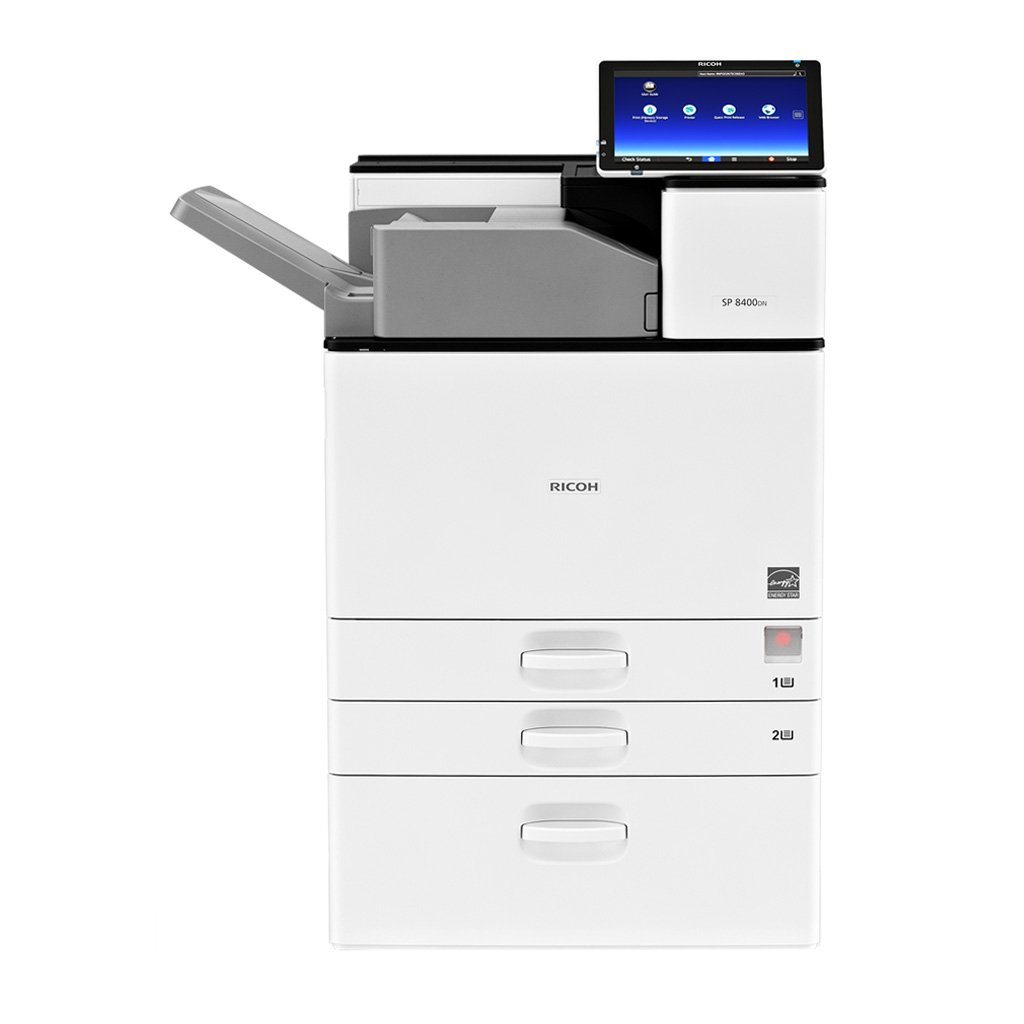

The SP 8400DN is a high quality A3 black and white printer with a print speed of 60 ppm.
This device provides new and enhanced features to increase productivity, while the inclusion of a Smart Operation Panel greatly improves the usability.
The optional hybrid finisher provides either staple or staple-free finishing, while the standard finisher delivers better stacking and stapling quality, safety, and paper jam removal.
The SP 8400DN also supports an optional internal multi-folding unit, which offers four types of folding options that help to reduce workload and cost.
With various eco-friendly features, the SP 8400DN provides efficient power consumption and one of the lowest Typical Electricity Consumption (TEC) among devices in the same category.

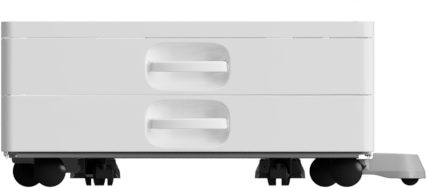

Paper Feed Unit PB3240
Optional 2-tray paper feed unit that increases the paper capacity of the device.
Capacity: 1,100 (2 x 550) sheets
Paper size: B6–SRA3
Envelopes: COM10, Monarch, C6–C5
Custom paper size: 90–320 x 148–457.2 mm
Paper weight: 60–300 g/m2
Dimensions (W x D x H): 587 x 685 x 247 mm
Weight: 22 kg
Notes:
Cannot be installed with LCT PB3260,Console Type F

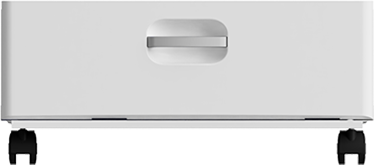

Console Type F
Metal cabinet. Provides businesses with a convenient option for storage of supplies and paper. Raises MFP to optimum height.
Dimensions: 586 × 683 × 245 mm
Weight: 15 kg
Notes:
Cannot be installed with Paper Feed Unit PB3240,LCT PB3260,LCT RT3030

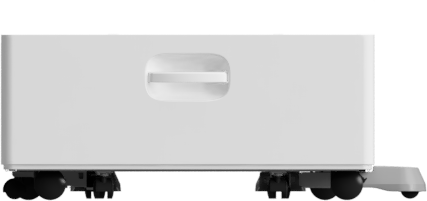

LCT PB3260
Optional tandem Large Capacity Tray significantly increasing the capacity of the device.
Capacity: 2,000 (2 x 1,000) sheets
Paper size: A4
Paper weight: 60–300 g/m2 Dimensions (W x D x H): 587 x 685 x 247 mm
Weight: 22 kg
Power consumption: 15 W or less
Notes:
Cannot be installed with Paper Feed Unit PB3240,Console Type F
LCT RT3030
Optional side Large Capacity Tray significantly increasing the capacity of the device.
Capacity: 1,500 sheets
Paper size: A4, B5
Paper weight: 52–300 g/m2
Dimensions (W x D x H): 340 x 544.5 x 290 mm
Weight: 9.8 kg
Power consumption:13 W or less
Notes:
One of the following must also be selected: Paper Feed Unit PB3240,LCT PB3260
Cannot be installed with Console Type F

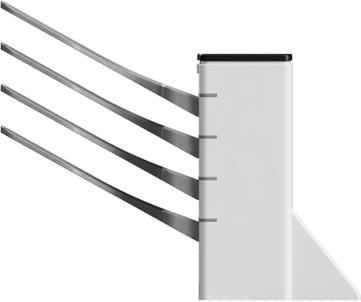

Mailbox CS3010
Provides individual bins for separate users or jobs. Can be configured with a mainframe or finisher.
Number of bins: 4
Capacity: 500 sheets (125 sheets per bin)
Paper size: B6–A3
Envelopes: Com10, Monarch, C5–C6
Custom paper size: 90–297 x 148–431.8 mm
Paper weight: 52–169 g/m2 Dimensions (W x D x H): 555 x 544 x 506 mm
Weight: 13 kg

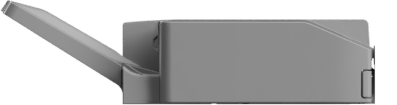

Internal Multi-Fold Unit FD3000
Offers four types of single-sheet folding, including Z-fold, half-fold, outer tri-fold, and inner tri-fold within the original footprint as it is installed in the exit tray.
Paper size: Multi-folding unit only Z-fold, half-fold—A4–A3, B4
Outer tri-fold, inner tri-fold—A4–A3 When connected to finishers SR3210 and SR3230 Z-fold—A4–A3, B4
Half-fold—A4–A3, B4, 12" x 18", 12.6" x 17.7" (SRA3)
Outer tri-fold, inner tri-fold—A4–A3
Paper weight: 52–300 g/m2 Dimensions: 612 x 555 x 184 mm
Weight: 15 kg
Notes:
Cannot be installed with Bridge Unit BU3070

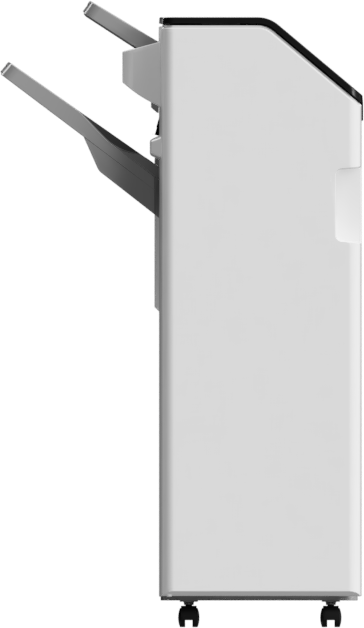

Hybrid Finisher SR3210
Offers both staple-free binding up to 5 sheets (10 pages) and conventional stapling to fasten together sheets with staples. Staple-free technology reduces need to restock staples, increases safety, and makes paper recycling easier.
Capacity: 1,000 sheets
Paper size: B6–SRA3, custom size 90 x 139.7 – 320 x 600 mm
Paper weight: 52–169 g/m2 (proof tray); 52–300 g/m2 (shift tray)
Staple capacity: 2–50 sheets (A4 or smaller); 2–30 sheets (B4 or larger)
Staple position: Top, bottom, 2 staples
Stapleless binding: 2–5 sheets, single or double row, top left
Optional punch unit PU3050 available
Dimensions (W x D x H): 563 x 620 x 960 mm
Weight: 27 kg or less
Power consumption: 35.4 W or less
Notes:
Cannot be installed with Finisher SR3230,Output Jogger Unit Type M25,Punch Unit PU3060 NA,Punch Unit PU3060 EU
One of the following must also be selected: Bridge Unit BU3070 and Paper Feed Unit PB3240,Bridge Unit BU3070 and LCT PB3260,Internal Multi-Fold Unit FD3000 and Paper Feed Unit PB3240,Internal Multi-Fold Unit FD3000 and LCT PB3260,Internal Multi-Fold Unit FD3000 and Console Type F,Bridge Unit BU3070 and Console Type F

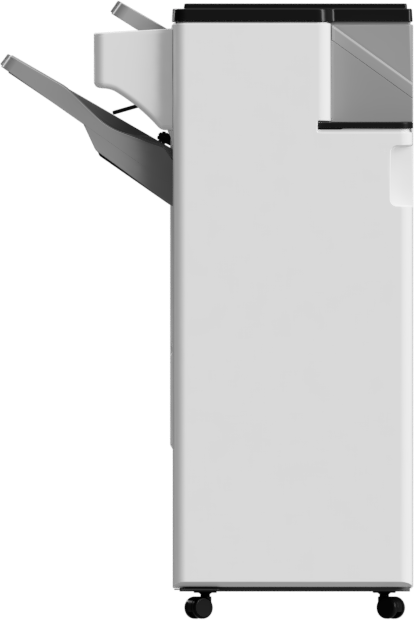

Finisher SR3230
Provides multi-position stapling and optional hole punching.
Capacity: 3,000 sheets
Paper size: B6–SRA3, custom size 90 x 139.7–330.2 x 487.7 mm
Paper weight: 52–220 g/m2 (proof tray); 52–300 g/m2 (shift tray)
Staple capacity: 50 sheets
Staple positions: Top, bottom, 2 staples, top slant
Staple paper weight: 52–105 g/m2
Optional punch unit PU3060 available
Dimensions (W x D x H): 657 x 613 x 960 mm
Weight: 33.5 kg or less; 38 kg or less—with punch unit
Power consumption: 67 W or less
Notes:
Cannot be installed with Hybrid Finisher SR3210,Punch Unit PU3050 EU,Punch Unit PU3050 NA
One of the following must also be selected: Bridge Unit BU3070 and Paper Feed Unit PB3240,Bridge Unit BU3070 and LCT PB3260,Internal Multi-Fold Unit FD3000 and Paper Feed Unit PB3240,Internal Multi-Fold Unit FD3000 and LCT PB3260,Internal Multi-Fold Unit FD3000 and Console Type F,Bridge Unit BU3070 and Console Type F
Bridge Unit BU3070
Required when a mainframe is configured with an external finisher. Transports pages from the standard exit area into a finisher for inline stapling or hole punching.
Notes:
One of the following must also be selected: Hybrid Finisher SR3210,Finisher SR3230
Cannot be installed with Internal Multi-Fold Unit FD3000
Output Jogger Unit Type M25
A hardware component for finishers to jog paper output into a tidy position on the output tray, making it easy to collect, sort, and stack large print jobs.
Paper size: B5–SRA3
Shift capacity: 20 sheets
Paper weight: 52–300 g/m2
Dimensions (W x D x H): 143 x 539 x 218 mm
Weight: 2 kg or less
Power consumption: 15 W or less
Notes:
By choosing this option the Finisher SR3230 will be added to the configuration.
Cannot be installed with Hybrid Finisher SR3210,Punch Unit PU3050 EU,Punch Unit PU3050 NA
Punch Unit PU3050 EU
Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.
Notes:
Cannot be installed with Punch Unit PU3050 NA,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Finisher SR3230,Output Jogger Unit Type M25
One of the following must also be selected: Hybrid Finisher SR3210
Punch Unit PU3050 NA
Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.
Notes:
Cannot be installed with Punch Unit PU3050 EU,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Finisher SR3230,Output Jogger Unit Type M25
One of the following must also be selected: Hybrid Finisher SR3210
Punch Unit PU3060 EU
Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.
Notes:
Cannot be installed with Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3060 NA,Hybrid Finisher SR3210
One of the following must also be selected: Finisher SR3230
Punch Unit PU3060 NA
Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.
Notes:
Cannot be installed with Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3060 EU,Hybrid Finisher SR3210
One of the following must also be selected: Finisher SR3230
PostScript 3 Unit Type P13
Genuine Adobe PostScript 3 printer driver. Recommended for printing more complex colour and PDF files.
XPS Direct Print Option Type P13
Allows users to print XPS format directly from the printer, without using an XPS-based driver.
Hard Disk Drive Option Type P13
The 320 GB Hard Disk Drive (HDD) is required for Locked/Hold/Stored Print. Data Overwrite and Encryption are available when the HDD is installed.
IPDS Unit Type P13
Genuine Intelligent Printer Data Stream unit for use in AS/400 environments. It provides more accurate interpretation of IPDS data, which means less errors and faster file processing than emulations.
Extended USB Board Type M19
Enables printing from USB Type B port.
Notes:
Cannot be installed with IEEE 802.11 Interface Unit Type M24,IEEE 1284 Interface Board Type M19,USB Device Server Option Type M19
USB Device Server Option Type M19
An interface board used to add an extra Ethernet port to the device. Once installed, users can connect two Ethernet cables simultaneously—one to the device's Gigabit Ethernet port and one to the Gigabit Ethernet port of USB Device Server Option.
Notes:
Cannot be installed with IEEE 802.11 Interface Unit Type M24,IEEE 1284 Interface Board Type M19,Extended USB Board Type M19
External NFC Card Reader Bracket Type P11
A table shaped option to place a card reader.
Notes:
Cannot be installed with NFC Card Reader Type P11
IEEE 1284 Interface Board Type M19
Allows users of older PC technology to connect to the latest printers and MFPs and access advanced printing features.
Notes:
Cannot be installed with IEEE 802.11 Interface Unit Type M24,Extended USB Board Type M19,USB Device Server Option Type M19
IEEE 802.11 Interface Unit Type M24
Enables WiFi connectivity and wireless printing.
Notes:
Cannot be installed with IEEE 1284 Interface Board Type M19,Extended USB Board Type M19,USB Device Server Option Type M19
NFC Card Reader Type P11
Ricoh card reader that supports authentication via Near Field Communication (NFC) technology. It can be used with Ricoh devices that are equipped with the 10.1" Smart Operation Panel that have standard authentication embedded.
Notes:
Cannot be installed with External NFC Card Reader Bracket Type P11
Attention Light AL3000
Visually alerts operators about system status changes to prompt attention. Can be configured with a mainframe.
Dimensions (W x D x H) : 100 × 100 × 606 mm
Standard inclusions
10.1" Smart Operation Panel
2 x 550-sheet paper input trays
100-sheet bypass tray
2 GB RAM
1.46 GHz CPU
PostScript3 emulation
Current configuration

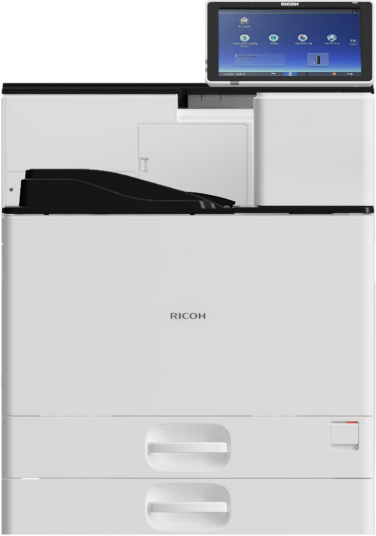

SP 8400DN
587 mm x
653 mm x
720 mm (W x D x H)
57 kg
Selected Options:
