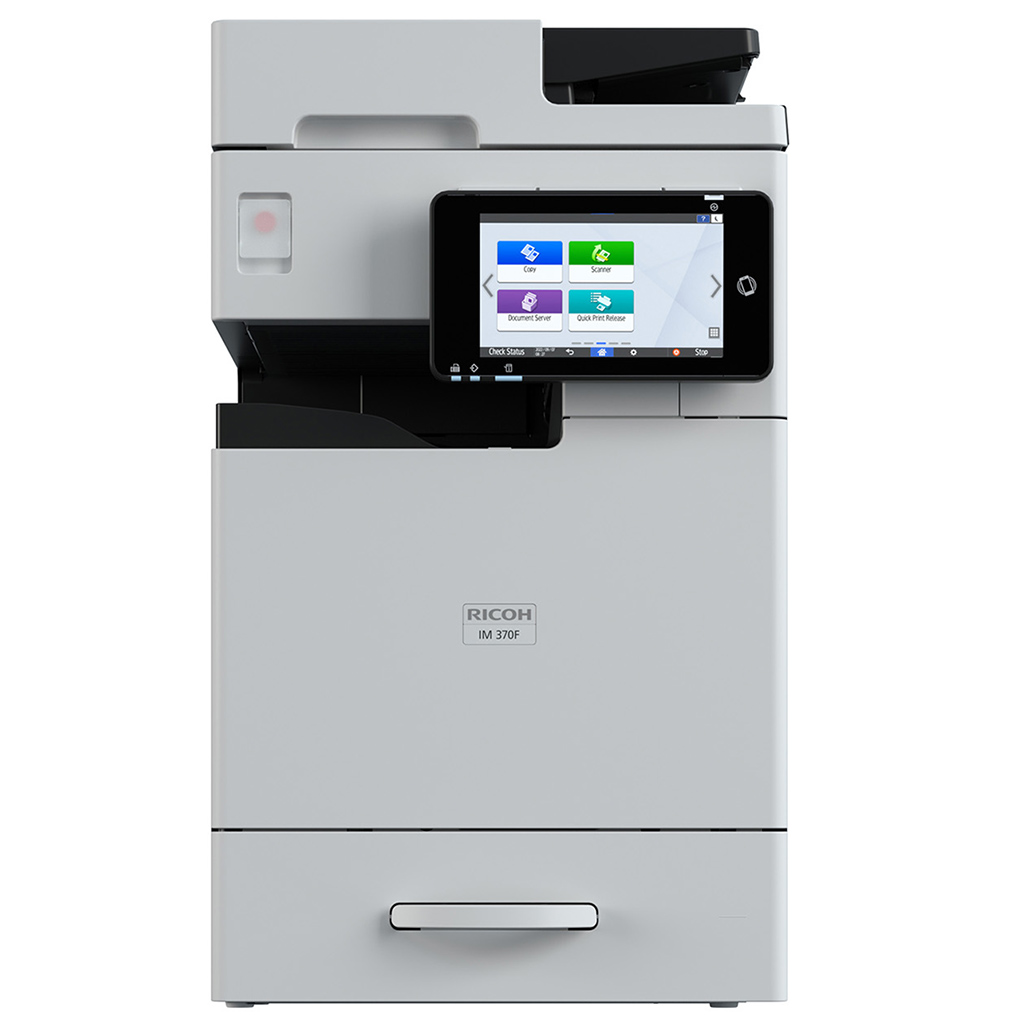

The IM 370F brings versatility of A3 MFPs to a compact A4 form factor, including support for A3 printing, scanning, and faxing via the bypass tray and Single Pass Document Feeder (SPDF).
The IM 370F comes standard with a third generation 7” Smart Operation Panel, which features a capacitive touchscreen, faster CPU, and Android OS 10 for a smoother and more secure user experience. The Smart Operation Panel also provides the ideal platform to support solutions software, such as RICOH Streamline NX, as well as RICOH Smart Integration apps for smarter and more efficient workflows in the modern workplace.
Additionally, the IM 370F supports RICOH Always Current Technology, which keeps the device up to date with the latest functions and security patches via continuous updates.
Paper Feed Unit PB1200
Optional 1-tray paper feed unit that increases the paper capacity of the device.
Capacity: 500 sheets
Paper size: A4 LEF–A6 SEF
Paper weight: 60–162 g/m2
Dimensions (W x D x H): 374 x 493 x 124 mm
Weight: 8 kg
Power consumption: 17 W
Document Feeder Paper Guide Tray Type M54
Recommended for users who frequently load originals larger than A4 into the document feeder tray for scanning. Provides a more efficient way to scan larger originals than the standard built-in extendable tray. A3 scanning can still be performed without this option.
Console Type 1647 (Cabinet)
A dual-purpose metal console with low-profile stability feet. Provides a convenient option for the storage of supplies and raises the MFP to an optimum height. This cabinet configuration can be utilised with the mainframe or mainframe with one (1) additional paper feed unit for a full-floor standing configuration.
Notes:
Cannot be installed with Console Type 1647 (Caster base)
Console Type 1647 (Caster base)
A dual-purpose metal console with low-profile stability feet. This caster base configuration of the console provides a sturdy base for the mainframe when configured with two additional paper feed units. The caster base is mandatory when three (3) additional paper feed units are configured and can also be utilised as a disability option when one or two paper feed units are configured.
Notes:
Cannot be installed with Console Type 1647 (Cabinet)
One of the following must also be selected: Paper Feed Unit PB1200
OCR Unit Type M54
Scans and creates searchable PDF files from hardcopy originals via Optical Character Recognition. Enables the creation of searchable PDF documents at the MFP.
PostScript3 Unit Type M54
Genuine Adobe PostScript 3 printer driver. Recommended for printing more complex documents.
IPDS Unit Type M54
Genuine Intelligent Printer Data Stream unit for use in AS/400 environments. It provides more accurate interpretation of IPDS data, which means less errors and faster file processing than emulations.
Device Server Option Type M54
An interface board used to add an extra Ethernet port to the device. Once installed, users can connect two Ethernet cables simultaneously—one to the device's Gigabit Ethernet port and one to the Gigabit Ethernet port of the Device Server Option.
NFC Card Reader Type M54
Ricoh card reader that supports authentication via Near Field Communication (NFC) technology. It can be used with Ricoh devices that are equipped with a Smart Operation Panel that has standard authentication embedded.
Notes:
Cannot be installed with Card Reader Cover Type M54
SSD Option Type M54 256GB
Solid state drive with 256 GB capacity.
Notes:
Cannot be installed with HDD Option Type M54 320GB
HDD Option Type M54 320GB
Hard disk drive with 320 GB capacity.
Notes:
Cannot be installed with SSD Option Type M54 256GB
IEEE 802.11a/b/g/n Interface Unit Type M54
Enables WiFi connectivity and wireless printing.
Card Reader Cover Type M54
For use with third party card reader solutions. The Card Reader Cover is positioned on the right-hand side of the Smart Operation Panel and is connected by a USB 2.0 Type A port. A card reader is not included. Not all card readers may be supported.
Notes:
Cannot be installed with NFC Card Reader Type M54
Unicode Font Package for SAP 1 Licence
Supports multilingual data without restrictions.
Optional Counter Interface Unit Type M12
Used with external third party counting devices for accounting and charge-back purposes.
Fax Memory Unit Type M54 64MB
Additional memory that increases fax memory to 4,800 pages and fax resolution to 400 x 400 dpi.
Fax Connection Unit Type M54
Enables users to send and receive faxes on a sub-MFP via a fax-enabled main MFP. This option has to be installed in both the main MFP and sub-MFP(s) needing remote fax.
Standard inclusions
7" Smart Operation Panel
50-sheet SPDF
500-sheet input tray + 100-sheet bypass tray
56 GB eMMC
A3 paper support
Mobile printing
Current configuration
IM 370F
374 mm x
493 mm x
640 mm (W x D x H)
41 kg
Selected Options:
